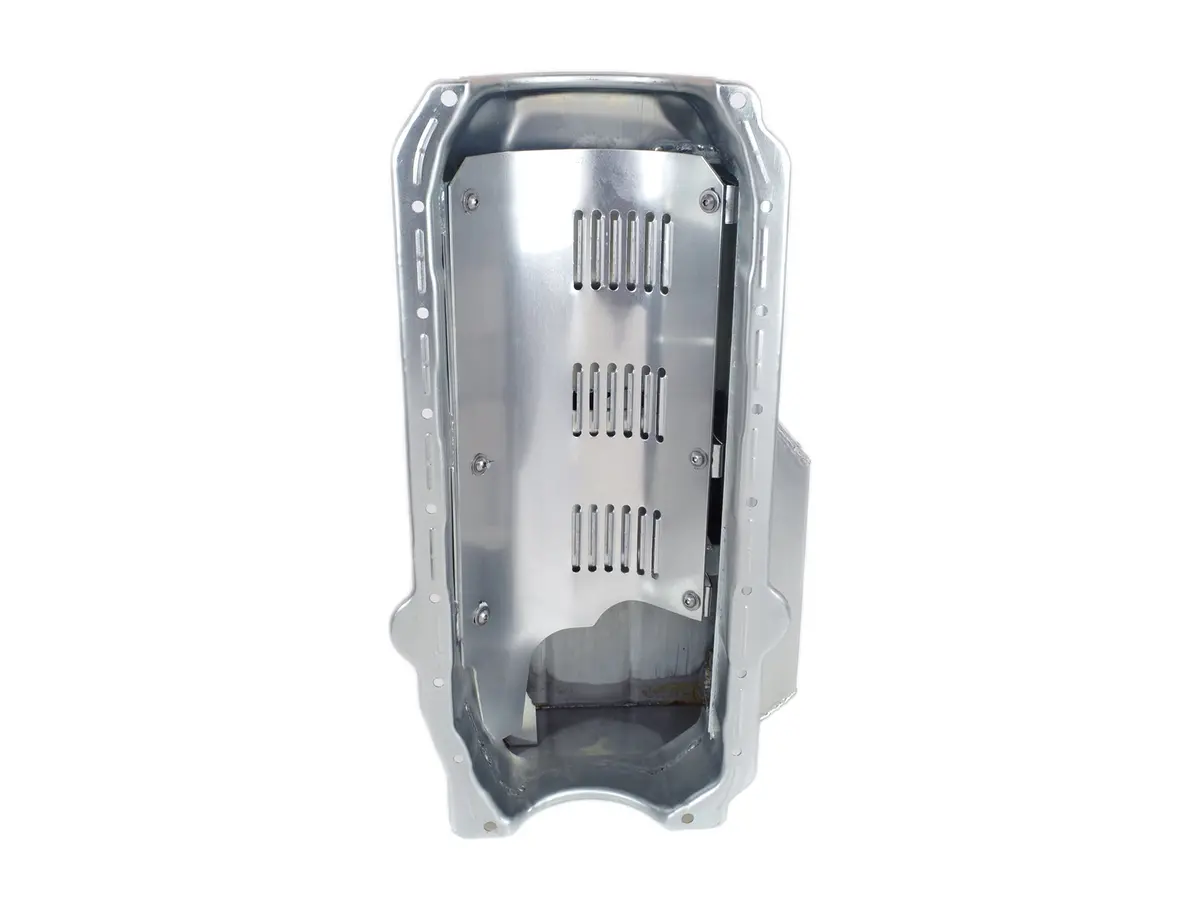

Canton Small-Block Chevy Circle Track Oil Pan – 6.5″ Deep Power Pan For Pre-1986 Engines

Description

This circle track oil pan is for use on pre?85 blocks SBC motors. It?s shallow 6 ?? depth and L-sump design make it ideal for many applications. The sump features a six trap door baffle, oil recovery pouch, built in louvered windage tray,

• Wet sump pan for ’85 and earlier small block Chevy engines
• 6.5-quart system capacity
• Features six trap door baffles
• Oil recovery pouch
• Bolt in slosh baffle
• Built in louvered windage tray
• 1/2″ temperature bung
• Provision for Canton Racing pan mounted dipstick

Attributes:

• Brand Name: Canton
• GTIN: 00887753711328
• Baffled: Yes
• Capacity: 6.5 Quart System Capacity
• Crank Scraper Included: No
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Engine: For S.B. Chevy 1985 and earlier blocks
• Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
• Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
• Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
• Feature 4: Bolt On Slosh Baffle For Oil Control
• Feature 5: Removable Louvered Windage Tray
• Feature 6: Provision for Canton Pan Mounted Dipstick
• Feature 7: 1/2 NPT Temp Sensor Bung
• Feature 8: Magnetic Drain Plug
• Finish: Silver Plating
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 20-036 – Pickup for Small Block Standard Volume Pump M55 & M55A
• Recommended Accessory 10: 88-100T ? SBC 86’+ Oil Pan Gasket
• Recommended Accessory 2: 20-031 – Pickup for Small Block High Volume Pump M55HV
• Recommended Accessory 3: 20-032 – Pickup for Small Block Standard Volume M155 Pump with 3/4″ Inlet
• Recommended Accessory 4: M-55 – SBC Standard Volume Oil Pump
• Recommended Accessory 5: M-55A – SBC Standard Volume High Pressure Oil Pump
• Recommended Accessory 6: M-55HV – SBC High Volume Oil Pump
• Recommended Accessory 7: M-155 – SBC Standard Volume Oil Pump with 3/4″ Inlet
• Recommended Accessory 8: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
• Recommended Accessory 9: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T Fitting
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.5 x 13.5 x 10 inches
• Weight: 17.85 POUNDS
